ICON Stage 5 System for 2010+ FJ Cruiser/4Runner (Tubular and Non-Tubular)

  • Sale
  • $5,769.70


ICON Stage 5 System for 2010+ FJ Cruiser/4Runner
(see details below of both tubular and non-tubular)



NON-TUBULAR
Overview:

The Stage 5 suspension system for the 2010 + Toyota 4Runner is the best over all handling bolt on suspension system you can install. This system can handlle any terrain you throw at it and gives you unsurpassed ride quality on the street and the performance offroad is incredible. Remote Reservoir's are added to the front Coil-over shocks in the Stage 5 system which give the 4Runner's front suspension longevity and great heat dissipation through any terrain you try to cross. Our rear springs in this system give the 4Runner 2" of lift, and the rear billet lower links help manage the rear axle to cycle smoothly with out bind. ICON's V.S. Series 2.5" Diameter Rear Remote Reservoir Shocks make vast improvements compared to our other systems for the people that use there vehicles in various on and offroad situations. These shocks are tuned specifically to give your Toyota 4Runner a balanced and smooth ride quality, along with extended length shock cooling from the increased oil volume and remote reservoir. 57810 4Runner 2.5" rear shocks have a built in bump zone to increase your compression valving in the final two inches of compression travel, which prevents the harsh bottom out sensation, and gives the vehicle a much more controlled ride quality.

Tech Info:

• We recommend the use of our #56100 shock shin guards or a protective boot to reduce the chance of shock shaft damage. These shocks are located in a vulnerable position that allows debris to easily come in direct contact with the shock shaft.

• Works with KDSS equipped Vehicles

Wheel & Tire Fitment Info:

OEM Wheels & Tires:    Yes

Aftermarket Wheels:    16" - 18" w/ up to 5" Backspace

                                 20" + w/ up to 5.250 Backspace (pending wheel make)

Aftermarket Tires:       33" Tall Tires

                                 Larger Tires May Fit but Fender Trimming and Modifications will be Required.

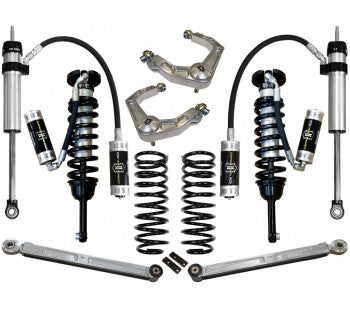

System Components:

58747    (QTY - 1)  - Extended Travel Remote Reservoir Adjustable Coil-over Shock Kit

58551    (QTY - 1)  - Billet Uniball Upper Control Arm Kit

52700    (QTY - 1)  - 2" Lift Rear Coil-spring Kit

57810    (QTY - 2)  - ICON V.S. 2.5 Series Remote Reservoir Rear Shocks

54000    (QTY - 1)  - Billet Aluminum Lower Rear Trailing Arm Kit

Options:

56100    (QTY - 1)  - ICON Rear shock shin guards

54100    (QTY - 1)  - Billet upper adjustable link arms

54200    (QTY - 1)  - Adjustable track bar

52800    (QTY - 1)  - ICON Overland Series dual rate 3" lift rear coil springs

56104    (QTY - 1)  - Rear hydraulic bumpstop kit

198000  (QTY - 1)  - ICON 2 pin spanner wrench



ICON Stage 5 System for 2010+ FJ Cruiser/4Runner

TUBULAR
Overview:

The Stage 4 suspension system w/ tubular UCA for the 2010 +  4Runner is the best over all handling bolt on suspension system you can install. This system can handlle any terrain you throw at it and gives you unsurpassed ride quality on the street and the performance offroad is incredible. Remote Reservoir's are added to the front Coil-over shocks in the Stage 5 system which give the 4Runner's front suspension longevity and great heat dissipation through any terrain you try cross. Our rear springs in this system give the 4Runner Cruiser 2" of lift, and the rear billet lower links help manage the rear axle to cycle smoothly with out bind. ICON's V.S. Series 2.5" Diameter Rear Remote Reservoir Shocks make vast improvements compared to our other systems for the people that use there vehicles in various on and offroad situations. These shocks are tuned specifically to give your 4Runner a balanced and smooth ride quality, along with extended length shock cooling from the increased oil volume and remote reservoir. 57810 4Runner 2.5" rear shocks have a built in bump zone to increase your compression valving in the final two inches of compression travel, which prevents the harsh bottom out sensation, and gives the vehicle a much more controlled ride quality.

Tech Info:

• We recommend the use of our #56100 shock shin guards or a protective boot to reduce the chance of shock shaft damage. These shocks are located in a vulnerable position that allows debris to easily come in direct contact with the shock shaft.

• Works with KDSS equipped Vehicles

Wheel & Tire Fitment Info:

OEM Wheels & Tires:    Yes

Aftermarket Wheels:    16" - 18" w/ up to 5" Backspace

                                 20" + w/ up to 5.250 Backspace (pending wheel make)

Aftermarket Tires:       33" Tall Tires

                                 Larger Tires May Fit but Fender Trimming and Modifications will be Required.

System Components:

58747    (QTY - 1)  - Extended Travel Remote Reservoir Adjustable Coil-over Shock Kit

58451    (QTY - 1)  - Tubular Uniball Upper Control Arm Kit

52700    (QTY - 1)  - 2" Lift Rear Coil-spring Kit

57810    (QTY - 2)  - ICON V.S. 2.5 Series Remote Reservoir Rear Shocks

54000    (QTY - 1)  - Billet Aluminum Lower Rear Trailing Arm Kit

Options:

56100    (QTY - 1)  - ICON Rear shock shin guards

54100    (QTY - 1)  - Billet upper adjustable link arms

54200    (QTY - 1)  - Adjustable track bar

52800    (QTY - 1)  - ICON Overland Series dual rate 3" lift rear coil springs

56104    (QTY - 1)  - Rear hydraulic bumpstop kit

191011  (QTY - 1)  - ICON tubular uniball upper control arm cover caps

198000  (QTY - 1)  - ICON 2 pin spanner wrench

Does not ship to Canada!
